Product introduction

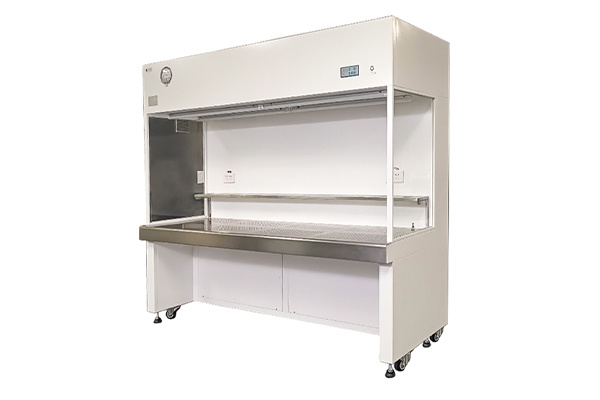

The VS series laminar air flow cabinet is a kind of local purification workbench with strong versatility. It adopts an adjustable air volume fan system, and the wind speed can be adjusted by a touch - type switch to ensure that the wind speed in the working area is always in a reasonable state. Basic principle: Indoor air is pre - filtered by the primary filter, then pressed into the static pressure box by a centrifugal fan, and finally finely filtered by a high -efficiency air filter. The clean air flow sent out in this way is evenly delivered in a vertical direction from top to bottom, thus
Models and specifications
VSF -1300
Specifications
Parameter | Value |
|---|---|
Cleanliness | ISO5级 （ 100级 ） ISO Class 5(Class 100) |
Bacterial count | ≤0.5每器皿，小时 （ 90 mm 器皿 ） ≤0.5 per vessel per hour(90mm vessel) |
Average wind speed | 0.3 ～ 0.6m/s （ 可调 ） 0.3 — 0.6m/s (adjustable) |
Noise | ≤62dB |
Half value of jitter | ≤5μm |
illumination | ≥300LX |
Power supply | AC 220V/50 Hz |
Maximum energy consumption | 0.8 kW |
Weight | 280kg |
Workspace dimensions | 1120*650*720mm |
External dimensions | 1300*825*1760mm |
Specifications and serial numbers of HEPA | 760*610*50*② |
ultraviolet light | 30w*② |
Number of suitable people | Double - person |
VSF -1300 CS
Specifications
Parameter | Value |
|---|---|
Cleanliness | ISO5级 （ 100级 ） ISO Class 5(Class 100) |
Bacterial count | ≤0.5每器皿，小时 （ 90 mm 器皿 ） ≤0.5 per vessel per hour(90mm vessel) |
Average wind speed | 0.3 ～ 0.6m/s （ 可调 ） 0.3 — 0.6m/s (adjustable) |
Noise | ≤62dB |
Half value of jitter | ≤5μm |
illumination | ≥300LX |
Power supply | AC 220V/50 Hz |
Maximum energy consumption | 0.4 kW |
Weight | 250kg |
Workspace dimensions | 1280*650*600mm |
External dimensions | 1300*800*1700mm |
Specifications and serial numbers of HEPA | 760*610*50*① |
ultraviolet light | 20w*① |
Number of suitable people | Single -person |
VSF -840
Specifications
Parameter | Value |
|---|---|
Cleanliness | ISO5级 （ 100级 ） ISO Class 5(Class 100) |
Bacterial count | ≤0.5每器皿，小时 （ 90 mm 器皿 ） ≤0.5 per vessel per hour(90mm vessel) |
Average wind speed | 0.3 ～ 0.6m/s （ 可调 ） 0.3 — 0.6m/s (adjustable) |
Noise | ≤62dB |
Half value of jitter | ≤5μm |
illumination | ≥300LX |
Power supply | AC 220V/50 Hz |
Maximum energy consumption | 0.4 kW |
Weight | 180kg |
Workspace dimensions | 800*680*570mm |
External dimensions | 840*700*1610mm |
Specifications and serial numbers of HEPA | 760*610*50*① |
ultraviolet light | 20w*② |
Number of suitable people | Single - person |
