Product Introduction
VHPS Series Hydrogen Peroxide Sterilizer takes advantage of the fact that hydrogen peroxide in a gaseous state at room temperature has a greater
sporicidal ability than in a liquid state. Free hydroxyl groups are generated during production, which attack cellular components, including lipids, proteins,
and DNA structures, meeting the requirements for complete sterilization.
The sterilizer is a device that vaporizes a hydrogen peroxide solution with a concentration of 30%~35%hydrogen peroxide) into hydrogen peroxide
vapor through a vaporizer, and then inputs it into an enclosed space through pipelines for disinfection and sterilization.
Working Principle
VHPS series Hydrogen Peroxide Sterilizer takes advantage of the fact that hydrogen peroxide in a gaseous state at room temperature has a greater sporicidal ability than in a liquid state. Free hydroxyl groups are generated during production, which attack cellular components, including lipids, proteins,
and DNA structures, meeting the requirements for complete sterilization.
Technical Features
1.Unique atomization generation technology: At room temperature, the hydrogen peroxide solution is converted into mist-like particles through an atomizer without changing the composition structure of the disinfectant.
2.Aerosol formation technology: Under high-speed swirling flow, the atomized particles can be rapidly formed into micron-level(1-10um) aerosols.
Due to the large surface area of the aerosols, the disinfection efficiency is higher.
3.Unique long-distance delivery technology: The injection tube is set in a spiral structure. After the air flow passes through, a spiral columnar fluid is formed, which can deliver the disinfectant aerosol over a long distance, making the disinfection range extensive and uniform.

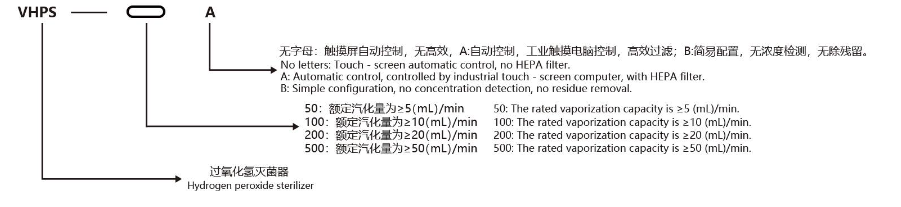

Models and specifications
VHPS -50
Specifications
Parameter | Value |
|---|---|
Rated vaporization capacity | 0~5g/ min |
Air volume | 60m³/h |
Sterilization factor | Hydrogen peroxide vapor |
Biological decontamination ability | 6Lg |
Power supply | AC 220V,50 Hz |
Flash evaporation power | 2.5 kW |
Weight (kg ) | 150 |
Overall dimensions w*d*h( mm ) | 600*720*1150 |
VHPS -100
Performance parameters
Parameter | Value |
|---|---|
Rated vaporization capacity | 0~10g/ min |
Air volume | 120m³/h |
Sterilization factor | Hydrogen peroxide vapor |
Biological decontamination ability | 6Lg |
Power supply | AC220V,50 Hz |
Flash evaporation power | 12 kW |
Weight (kg ) | 200 |
Overall dimensions w*d*h( mm ) | 740*870*1150 |
VHPS -200
Specifications
Parameter | Value |
|---|---|
Rated vaporization capacity | 0~20g/ min |
Air volume | 200 ~ 250m³/h |
Sterilization factor | Hydrogen peroxide vapor |
Biological decontamination ability | 6Lg |
Power supply | AC220V,50 Hz |
Flash evaporation power | 18kW |
Weight (kg ) | 300 |
Overall dimensions w*d*h( mm ) | 1200*900*1950 |
VHPS -500
Specifications
Parameter | Value |
|---|---|
Rated vaporization capacity | 0~30g/ min |
Air volume | 700m³/h |
Sterilization factor | Hydrogen peroxide vapor |
Biological decontamination ability | 6Lg |
Power supply | AC220V,50 Hz |
Flash evaporation power | 35kW |
Weight (kg ) | 400 |
Overall dimensions w*d*h( mm ) | 1400*1150*1950 |
