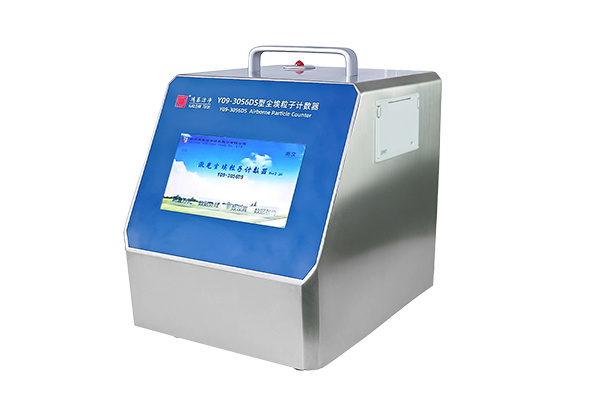

Product introduction
Airborne particle counter is a detection instrument used to measure and analyze the size and quantity of dust particles per unit volume of air in clean environments, and to determine the cleanliness level of clean environments based on standards. Widely used for clean room testing in enterprises such as medicine and health, optics, chemistry, food, cosmetics, electronics, biological products, aerospace, etc.
Specifications
| Parameter | Value |
|---|---|
| sampling flow | 50L/ min |
| Particle size channel | 0.3,0.5,1.0,3.0,5.0,10μm |
| Dimensions | 310*240*280 mm ³ （ 宽×深×高 ） 310*240*280 mm ³(w*d*h) |
| Weight | 8.5kg |
| Sampling period | 1 秒 - 9 9 分 9 9 秒 ( 可 调 ) 1s~99 min 99s( adjustable ) |
| Sampling frequency | 1 — 99小时99分99秒 1 ～ 99h 99m 99s |
| Power supply | 14.8V锂电池 14.8 V lithium battery |
| Display | 800*400分辨率，65k色，触摸屏控制系统 800*480 resolution ,65 k colors , touch screen control system |
| Rated power | 30W |
| Self-cleaning time | ≤10min |
| Light source life | MTTF 长寿命激光二极管 Long life laser diode with 50,000 hours MTTF |
| Print mode | 内置针式打印机 Dot matrix printing |
| Counting alarm | 0.5,1.0,5.0每个通道可任意设置报警数据 0.5,1.0,5.0 Alarm data can be set arbitrarily for each channel |
| Data storage | 10000组+3000组 UCL 10000 groups +3000 gro ups UCL |
| Continuous working hours | 6H |
| Maximum sampling concentration | 35000/L |
| Working environment | 温度：10~35℃ ； 湿度： 20%～75% Temperature :10~35℃; Humidity :20% ~ 75% |
| Optional accessories | S S 辅 助 车 SS Auxiliary Vehicle |
| Processing method | 自动测量，计算测量，置信度测量 Single , Repeated , Continuous , Calculated , GBmodel ( UCL ) |
Technical information
model description
Y09-516DS Y09-316DS Dot matrix printing,stainless steel. Y09-3106H Number of particle size channels. 1:1CFM=28.3L/min,05:50L/min,10:100L/min Minimum detectable particle size:0.1μm for Channel 1, 0.3μm for Channel 3, and 0.5μm Y09-5106DS for Channel 5. Airborne particle counter model series. Y09-3056DS
optional accessories
invention patent:ZL201010223403.4 utility model patent: ZL200920041399.2 ZL201020254384.7 Optional accessories SS Auxiliary Vehicle Processing method Single, Repeated, Continuous, Calculated, GBmodel(UCL)
