Product introduction

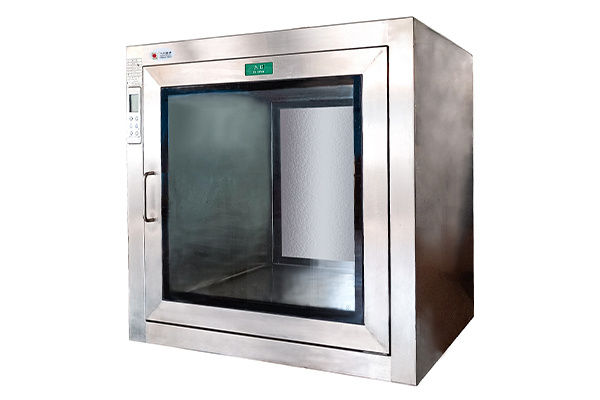

The static pass box is an auxiliary device for clean rooms. It is mainly used for the transfer of small items between clean areas, as well as between clean and non -clean areas. This helps to reduce the number of times the clean room door is opened, minimizing the pollution to the clean room. The transfer window is made of stainless- steel plates, with a flat and smooth surface. The two doors are interlocked with each other, effectively preventing cross -contamination. It is equipped with an electronic or mechanical interlock device and can be configured with anultraviolet germicidal lamp.

Features

The static pass box is made of stainless- steel plates, which can effectively prevent corrosion. The two doors are equipped with an electronic interlocking device, so that they are interlocked and cannot be opened simultaneously. Both doors are made of double -layer glass. Their surfaces are flat, not prone to dust accumulation, and easy to clean. 1. Entirely made of 304 stainless steel wire drawing, it is aesthetically pleasing and 2. The four corners inside the cavity are designed with arcs, ensuring thorough cleaning without dead corners. 3. The two doors are equipped with an electronic interlocking device, so they cannot be opened simultaneously. 4. The two doors are made of double - layer tempered glass. The surface is flat, not prone to dust accumulation and easy to clean. 5. The two doors are of in- built type, embedded in the box body, making the outer surface flat. 6.The interlocking time is adjustable and it comes with an alarm function. 技术参数: 7.An ultraviolet germicidal lamp is optional; an LED lighting lamp is provided.

Configurations and specifications

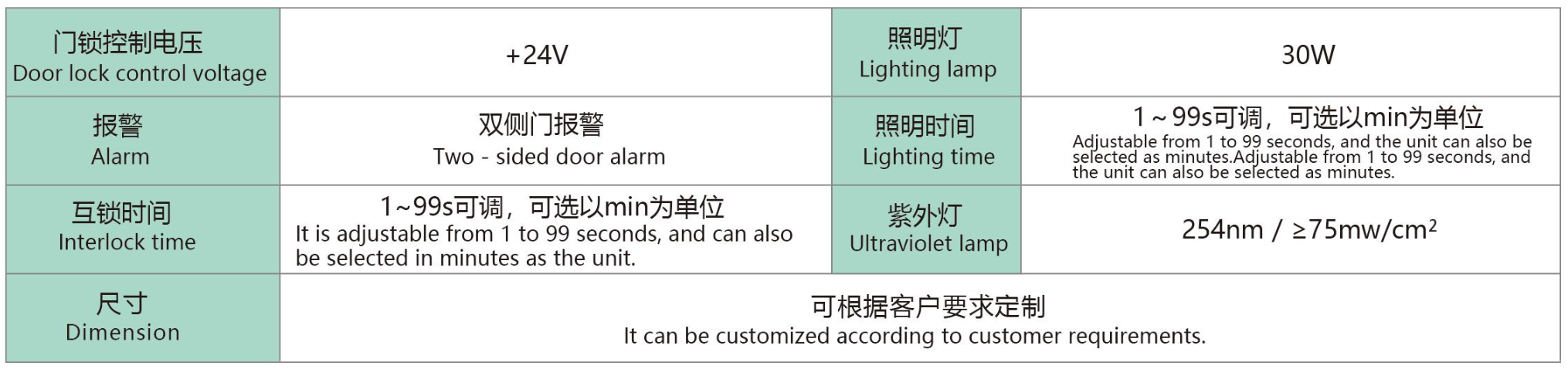

Static Pass Box configurations and specifications
