Product Introduction
The online monitoring particle counter system is used to record the presence of airborne suspended particles in key areas of the production line.
It can automatically and continuously monitor and record the particle size and quantity distribution of suspended particles in the monitored ambient air, while generating reports.
When the state of dust particles in the monitored environment exceeds the warning line and deviation correction line,the system can automatically trigger an audible and visual alarm to notify relevant personnel to handle it,thereby helping to ensure that the particle state in the monitored
critical environment is in a normal state to ensure the smooth progress of production.
Product advantages
1.A powerful software system that is compatible with sensors from all over the world,such as lighthouse,METONE,PMS……free upgrade.
2.The software system has an open data interface and can be easily connected to users' MES/SCADA and other systems.
3.The software fully complies with the functions of 21CFR and part11 regulations.
4.Powerful user management function,with over 1000 user management permission settings.
5.With real-time curve,data and historical curve data functions available for selection.
6.Remote monitoring 7/24 real-time monitoring data report.
7.Remote calibration,fast and flexible,without the need for disassembly and return to the factory.
8.HJCLEAN Software System Lifetime Free Upgrade.
Online airborne particle counter
The online airborne particle counter is a system that measures the size and quantity of airborne particles contained in a unit volume of air in a clean air environment.
This online particle counter has multiple models(Y09-SS,Y09-6S, REMOTE3016, REMOTE5102, REMOTE5102P). Adopting a new international sensor for detecting the concentration of airborne particles in the air,it is a high tech product integrating optics and laser technology, electronic
technology, computer technology,precision machinery,aerodynamics,and other disciplines.
It is characterized by high measurement accuracy,reasonable detection,stable performance,
multiple functions,unique modeling,small size, and light weight,and easy installation,It is mainly
used for online monitoring of cleanliness in clean environments,evaluating the change trend of ambient air dust particles,online monitoring,early warning,and alarming of ambient air quality and fugitive dust,etc...
This transmitter is designed to detect particle size classes and sampling methods in accordance
with international standards (ISO14644,EU-GMP), and its performance indicators comply
with national standards and national metrological verification regulations,It is widely used in online environmental monitoring in pharmaceutical,microelectronics,optics,medicine and health,biological products,atmospheric analysis,aerospace,and other departments.

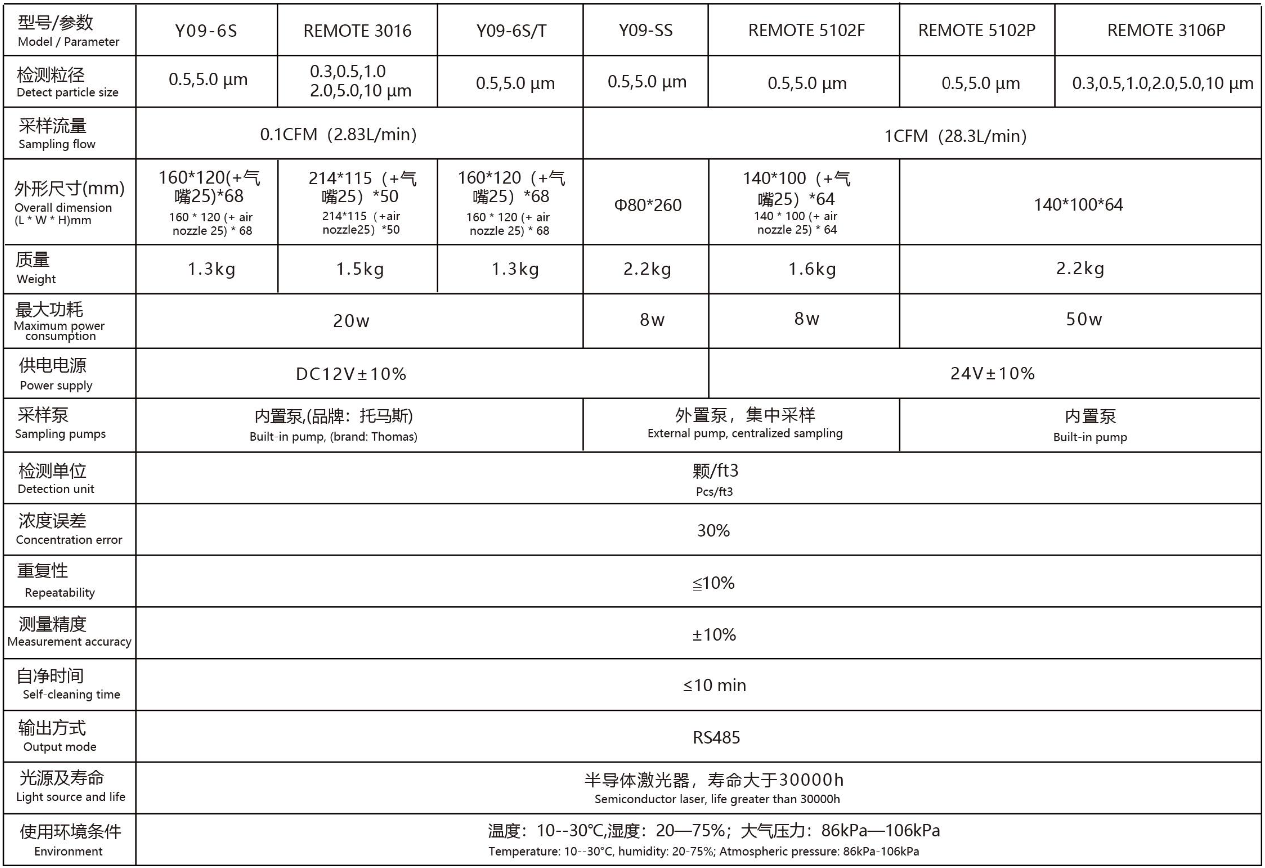

Models and specifications
REMOTE 3016
Performance parameters
Parameter | Value |
|---|---|
Detect particle size | 0.3,0.5,1.0 2.0,5.0,10 μm |
Sampling flow | 0.1 CFM (2.83L/ min ) |
Overall dimension (L*W*H) mm | 214*115(+ air nozzle 25)*50 |
Weight | 1.5kg |
Maximum power consumption | 20w |
Power supply | DC12V±10% |
Sampling pumps | Built-in pump (brand: Thomas) |
Detection unit | Pcs /ft³ |
Concentration error | 30% |
Repeatability | ≤10% |
Measurement accuracy | ±10% |
Self-cleaning time | ≤10 min |
Output mode | RS 485 |
Light source and life | Semiconductor laser , life greater than 30000h |
Environment | Temperature: 10–30 ℃, humidity : 20%—75% ; Atmospheric pressure :86 kPa -106 kPa |
REMOTE 3106P
Performance parameters
Parameter | Value |
|---|---|
Detect particle size | 0.3,0.5,1.0 2.0,5.0,10 μm |
Sampling flow | 1 CFM (28.3L/ min ) |
Overall dimension (L*W*H) mm | 140*100*64 |
Weight | 2.2kg |
Maximum power consumption | 50w |
Power supply | DC24V±10% |
Sampling pumps | Built-in pump |
Detection unit | Pcs /t³ |
Concentration error | 30% |
Repeatability | ≤10% |
Measurement accuracy | ±10% |
Self-cleaning time | ≤10 min |
Output mode | RS 485 |
Light source and life | Semiconductor laser , life greater than 30000h |
Environment | Temperature: 10–30 ℃, humidity : 20%—75% ; Atmospheric pressure :86 kPa -106 kPa |
REMOTE 5102F
Performance parameters
Parameter | Value |
|---|---|
Detect particle size | 0.5,5.0μm |
Sampling flow | 1 CFM (28.3L/ min ) |
Overall dimension (L*W*H) mm | 140*100(+air nozzle 25)*64 |
Weight | 1.6kg |
Maximum power consumption | 8w |
Power supply | DC24V±10% |
Sampling pumps | External pump,centralized sampling |
Detection unit | Pcs /ft³ |
Concentration error | 30% |
Repeatability | ≤10% |
Measurement accuracy | ±10% |
Self-cleaning time | ≤10 min |
Output mode | RS 485 |
Light source and life | Semiconductor laser , life greater than 30000h |
Environment | Temperature: 10–30 ℃, humidity : 20%—75% ; Atmospheric pressure :86 kPa -106 kPa |
REMOTE 5102P
Specifications
Parameter | Value |
|---|---|
Detect particle size | 0.5,5.0 μm |
Sampling flow | 1 CFM (28.3L/ min ) |
Overall dimension (L*W*H) mm | 140*100*64 |
Weight | 2.2kg |
Maximum power consumption | 50w |
Power supply | DC24V±10% |
Sampling pumps | Built-in pump |
Detection unit | Pcs /ft³ |
Concentration error | 30% |
Repeatability | ≤10% |
Measurement accuracy | ±10% |
Self-cleaning time | ≤10 min |
Output mode | RS 485 |
Light source and life | Semiconductor laser , life greater than 30000h |
Environment | Temperature: 10–30 ℃, humidity : 20%—75% ; Atmospheric pressure :86 kPa -106 kPa |
Y09-6S
Performance parameters
Parameter | Value |
|---|---|
Detect particle size | 0.5,5.0μm |
Sampling flow | 0.1CFM(2.83L/min) |
Overall dimension (L*W*H) mm | 160*120(+气 嘴25)*68 |
Weight | 1.3kg |
Maximum power consumption | 20w |
Power supply | DC12V±10% |
Sampling pumps | Built-in pump (brand: Thomas) |
Detection unit | Pcs /ft³ |
Concentration error | 30% |
Repeatability | ≤10% |
Measurement accuracy | ±10% |
Self-cleaning time | ≤10 min |
Output mode | RS 485 |
Light source and life | Semiconductor laser , life greater than 30000h |
Environment | Temperature: 10–30 ℃, humidity : 20%—75% ; Atmospheric pressure :86 kPa -106 kPa |
Y09-6S/T
Performance parameters
Parameter | Value |
|---|---|
Detect particle size | 0.5,5.0μm |
Sampling flow | 0.1CFM(2.83L/min) |
Overall dimension (L*W*H) mm | 160*120(+air nozzle 25)*68 |
Weight | 1.3kg |
Maximum power consumption | 20w |
Power supply | DC12V±10% |
Sampling pumps | Built-in pump (brand: Thomas) |
Detection unit | Pcs /ft³ |
Concentration error | 30% |
Repeatability | ≤10% |
Measurement accuracy | ±10% |
Self-cleaning time | ≤10 min |
Output mode | RS 485 |
Light source and life | Semiconductor laser , life greater than 30000h |
Environment | Temperature: 10–30 ℃, humidity : 20%—75% ; Atmospheric pressure :86 kPa -106 kPa |
Y09- SS
Performance parameters
Parameter | Value |
|---|---|
Detect particle size | 0.5,5.0μm |
Sampling flow | 1CFM(28.3L/min) |
Overall dimension (L*W*H) mm | φ80*260 |
Weight | 2.2kg |
Maximum power consumption | 8w |
Power supply | DC12V±10% |
Sampling pumps | External pump,centralized sampling |
Detection unit | Pcs /ft³ |
Concentration error | 30% |
Repeatability | ≤10% |
Measurement accuracy | ±10% |
Self-cleaning time | ≤10 min |
Output mode | RS 485 |
Light source and life | Semiconductor laser , life greater than 30000h |
Environment | Temperature: 10–30 ℃, humidity : 20%—75% ; Atmospheric pressure :86 kPa -106 kPa |
