Product introduction

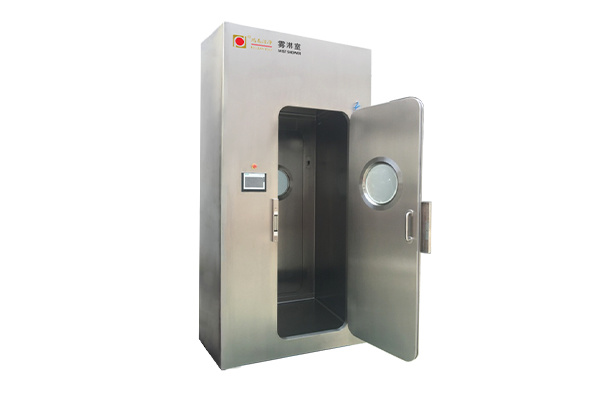

The MIS series mist shower is a new type of isolation and anti-pollution device with photoelectric control,electronic interlocking,and automatic spraying. the dust on the human body needs to be wetted to prevent it from being raised,thus protecting the personnel and the external environment.AfterIt is widely used in production and medical departments such as pharmaceuticals,biochemical products,and isolation wards.It is used in scenarios where passing through the mist shower,personnel can directly take off their outer clothes and leave the production site,which prevents the operators from carr

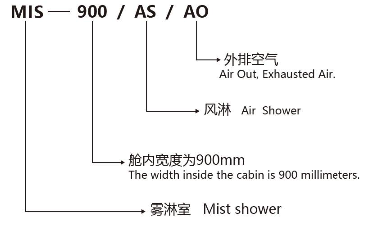

Models and specifications
MIS -900

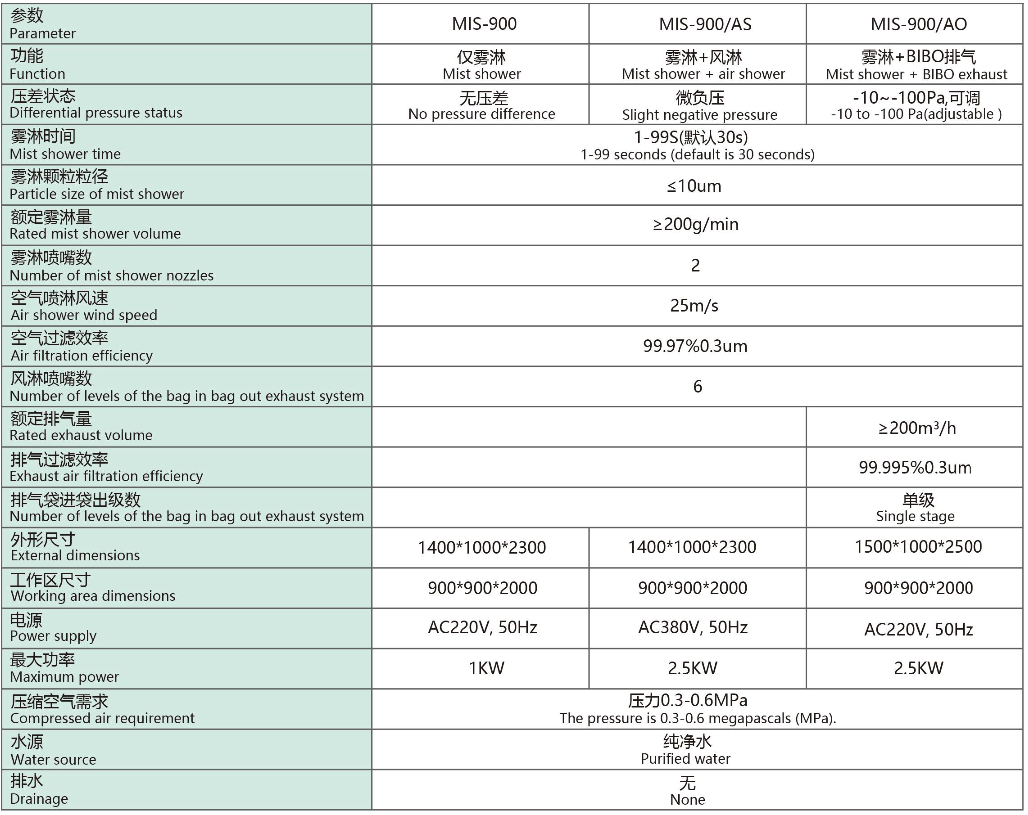

Specifications
Parameter | Value |
|---|---|
Function | Mist shower |
Differential pressure status | No pressure difference |
Mist shower time | 1 — 99S （ 默认30s ） 1–99 seconds (default is 30 second s) |
Particle size of mists hower | ≤10um |
Rated mist shower volume | ≥200g/min |
Number of mist shower nozzles | 2 |
Air shower wind speed | 25m/s |
Air filtration efficiency | 99.97%0.3 um |
Number of levels ofthebag in thebagout exhaust system | 6 |
Rated exhaust volume | ≥200m³/h |
Exhaustair filtration efficiency | 99.995%0.3 um |
Number of levels of thebag in thebagout exhaust system | Single stage |
External dimensions | 1400*1000*2300 |
Working area dimensions | 900*900*2000 |
Power supply | AC 220V,50 Hz |
Maximum power | 1 kW |
Compressedair requirement | 压力0.3-0.6 MPa The pressure is 0.3–0.6 megapascals (MPa ). |
Water source | Purified water |
Drainage | None |
MIS -900/ AO
Specifications
Parameter | Value |
|---|---|
Function | 雾淋+ BIBO 排气 Mist shower+BIBO exhaust |
Differential pressure status | -10~-100 Pa ， 可调 -10 to -100 Pa ( adjustable ) |
Mist shower time | 1 — 99S （ 默认30s ） 1–99 seconds (default is 30 second s) |
Particle size of mists hower | ≤10um |
Rated mist shower volume | ≥200g/min |
Number of mist shower nozzles | 2 |
Air shower wind speed | 25m/s |
Air filtration efficiency | 99.97%0.3 um |
Number of levels ofthebag in thebagout exhaust system | 6 |
Rated exhaust volume | ≥200m³/h |
Exhaustair filtration efficiency | 99.995%0.3 um |
Number of levels of thebag in thebagout exhaust system | Single stage |
External dimensions | 1500*1000*2500 |
Working area dimensions | 900*900*2000 |
Power supply | AC 220V,50 Hz |
Maximum power | 2.5 kW |
Compressedair requirement | 压力0.3-0.6 MPa The pressure is 0.3–0.6 megapascals (MPa ). |
Water source | Purified water |
Drainage | None |
MIS -900/ AS
Specifications
Parameter | Value |
|---|---|
Function | 雾淋+风淋 Mist shower + air shower |
Differential pressure status | Slight negative pressure |
Mist shower time | 1 — 99S （ 默认30s ） 1–99 seconds (default is 30 second s) |
Particle size of mists hower | ≤10um |
Rated mist shower volume | ≥200g/min |
Number of mist shower nozzles | 2 |
Air shower wind speed | 25m/s |
Air filtration efficiency | 99.97%0.3 um |
Number of levels ofthebag in thebagout exhaust system | 6 |
Rated exhaust volume | ≥200m³/h |
Exhaustair filtration efficiency | 99.995%0.3 um |
Number of levels of thebag in thebagout exhaust system | Single stage |
External dimensions | 1400*1000*2300 |
Working area dimensions | 900*900*2000 |
Power supply | AC 380V,50 Hz |
Maximum power | 2.5 kW |
Compressedair requirement | 压力0.3-0.6 MPa The pressure is 0.3–0.6 megapascals (MPa ). |
Water source | Purified water |
Drainage | None |
