Product introduction

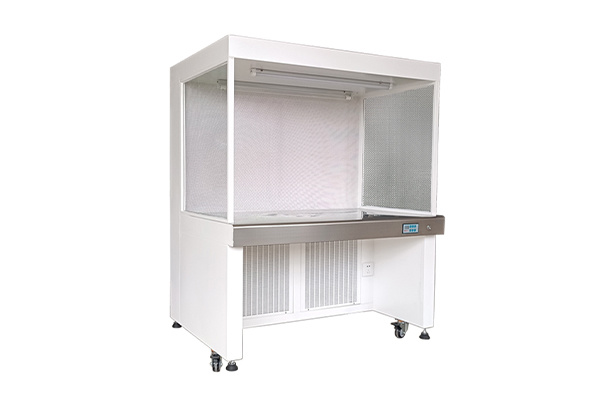

The HS series laminar air flow cabinet is a kind of local purification workbench with strong versatility. It adopts an adjustable air volume fan system, and the wind speed can be adjusted by a touch - type switch to ensure that the wind speed in the working area is always in a reasonable state. Basic principle: Indoor air is pre - filtered by the primary filter, then pressed into the static pressure box by a centrifugal fan, and finally finely filtered by a high -efficiency air filter. The clean air flow sent out in this way is evenly delivered in a vertical direction from top to bottom, thus
Models and specifications
HS-1300
Specifications
Parameter | Value |
|---|---|
Cleanliness level | ISO 5级 （ 100级 ） ISO Class 5(Class 100) |
Bacterial count | ≤0.5每器皿，小时 （ 90 mm 器皿 ） ≤0.5 per dish,per hour(90mm d ish) |
Average wind speed | 0.3 ～ 0.6m/s （ 可调 ） 0.3 ～ 0.6m/s(adjustable) |
Noise | ≤62dB |
Half value of jitter | ≤5μm |
illumination | ≥300LX |
Power supply | AC220V/50 Hz |
Maximum energy consumption | 0.8 kW |
Weight | 250kg |
Working area dimensions | 1180*650*570mm |
External dimensions | 1300*825*1430mm |
Specifications and numbers - HEPA | 610*610*50*② |
ultraviolet light | 30w*② |
Suitable number of people | Double -person |
HS-840
Specifications
Parameter | Value |
|---|---|
Cleanliness level | ISO 5级 （ 100级 ） ISO Class 5(Class 100) |
Bacterial count | ≤0.5每器皿，小时 （ 90 mm 器皿 ） ≤0.5 per dish,per hour(90mm d ish) |
Average wind speed | 0.3 ～ 0.6m/s （ 可调 ） 0.3 ～ 0.6m/s(adjustable) |
Noise | ≤62dB |
Half value of jitter | ≤5μm |
illumination | ≥300LX |
Power supply | AC220V/50 Hz |
Maximum energy consumption | 0.4 kW |
Weight | 160kg |
Working area dimensions | 720*650*570mm |
External dimensions | 840*825*1430mm |
Specifications and numbers - HEPA | 760*610*50*① |
ultraviolet light | 20w*② |
Suitable number of people | Single -person |
THS-650
Specifications
Parameter | Value |
|---|---|
Cleanliness level | ISO 5级 （ 100级 ） ISO Class 5(Class 100) |
Bacterial count | ≤0.5每器皿，小时 （ 90 mm 器皿 ） ≤0.5 per dish,per hour(90mm d ish) |
Average wind speed | 0.3 ～ 0.6m/s （ 可调 ） 0.3 ～ 0.6m/s(adjustable) |
Noise | ≤62dB |
Half value of jitter | ≤5μm |
illumination | ≥300LX |
Power supply | AC220V/50 Hz |
Maximum energy consumption | 0.4 kW |
Weight | 55kg |
Working area dimensions | 615*400*535mm |
External dimensions | 650*680*625mm |
Specifications and numbers - HEPA | 760*490*50*① |
ultraviolet light | 8w*① |
Suitable number of people | Single-person |
