Product introduction
-苏州鸿基洁净科技股份有限公司
Request product informationSpecifications
| Parameter | Value |
|---|---|
| Overall dimensions | 134*55*238 mm ³ （ 长*宽*高 ） 134*55*238mm³(w*d*h) |
| Sampling frequency | 1秒 — 99时99分99秒 1 second -99 hours ,99 minutes ,99 seconds |
| Weight | 0.8 kg |
| Sample delay | 0-99秒 0~99s |
| Max Count Range | 35000/L |
| Particle size channel | 0.3、0.5、1.0、3.0、5.0、 10μm |
| Light source | nm 激光二极管 760nm laser diode |
| Sample flow | 2.83L/min |
| Sampling period | 1秒 — 99分99秒 1s ～ 99m 99s |
| UCL ） Confidence Level (UCL) | 0.5、5.0μm UCL |
| Print mode | 蓝牙打印 Bluetooth printing |
| Accuracy | ±10%气溶胶 ±10%aerosol |
| Zero Count | ≤10min |
| Operate temperature | 0~40℃ |
| Display method | 480*32065K 3.5寸触摸屏 480*32065K 3.5-inch touch screen |
| Data Storage | 10000组+10000组UCL 10000+10000 UCL |
| Power supply | DC 7.4V供电/连续工作6小时 DC 7.4 V power supply / continuous operation for 6 hours |
Technical information
Sampling frequency
Overall dimensions 1 second -99 hours, 99 minutes, 99 seconds
134*55*238mm3(w*d*h)
Weight Sample delay 0~99s
Particle size channel
Max Count Range
2.83L/min
Light source 760nm laser diode Sample flow
Sampling period 1s~99m 99s
Confidence Level (UCL)
Accuracy
Print mode Bluetooth printing
±10erosol
≤10min 0~40℃
Zero Count Operate temperature
Display method 480*320 65K 3.5-inch touch screen Data Storage 10000+10000 UCL
Power supply
DC7.4V power supply/continuous operation for 6 hours

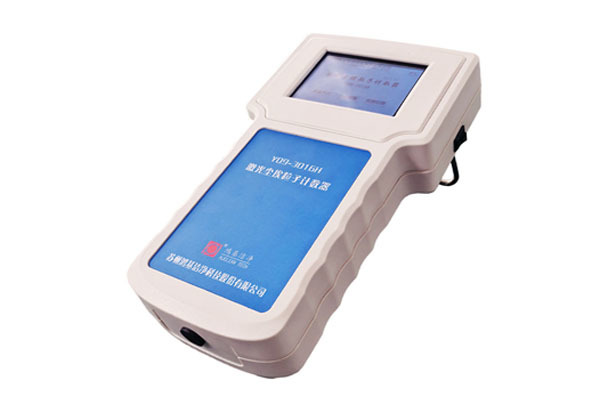

Family information — Handheld Airborne Particle Counters
