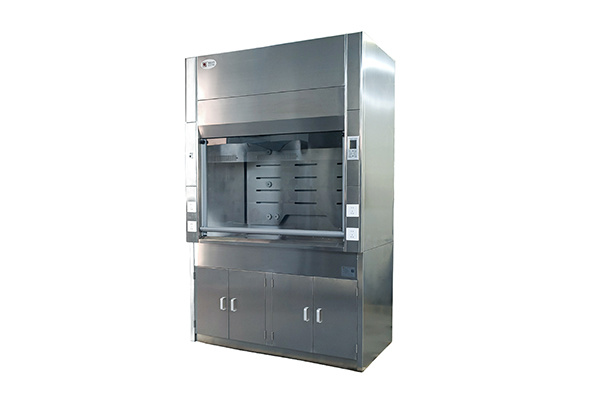

Product introduction
The FH series fume hoods are specialized safety ventilation devices that generate negative pressure to prevent toxic and harmful gases from spreading into the indoor environment. They are equipped with an exhaust system, an electromagnetic door interlock system, a sealing system, a dedicated HMI (Human - Machine Interface), and a cleaning and disinfection system. These fume hoods are widely used for ventilation and negative - pressure protection in places such as pharmaceutical manufacturing, medical treatment, healthcare, animal experiments, biosafety tests, and laboratories.

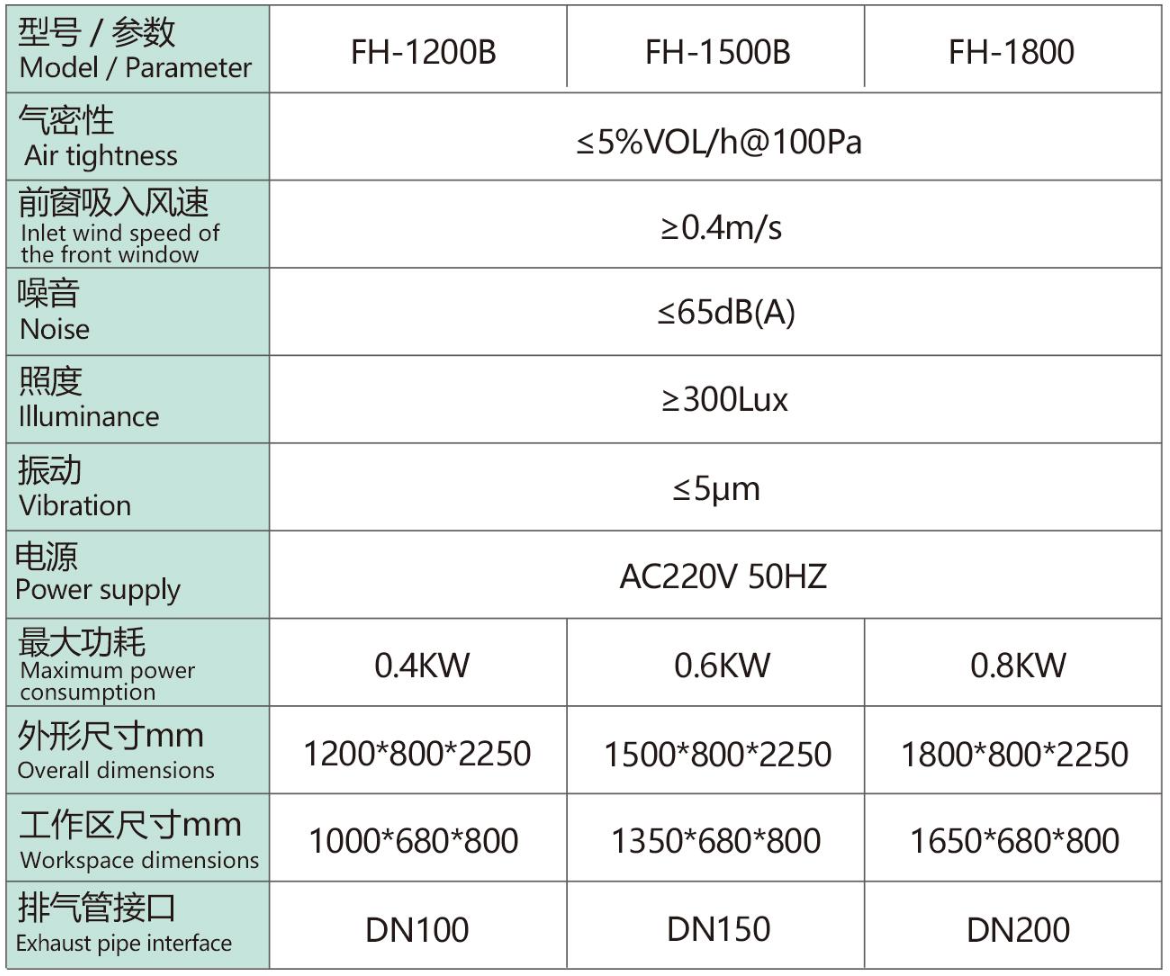

Models and specifications
FH -1200B
Specifications
Parameter | Value |
|---|---|
Air tightness | ≤5% VOL /h@100 Pa |
Inlet wind speed of the front window | ≥0.4m/s |
Noise | ≤65dB(A) |
Illuminance | ≥300Lux |
Vibration | ≤5μm |
Power supply | AC 220V 50 Hz |
Maximum power consumption | 0.4 kW |
mm Overall dimensions | 1200*800*2250 |
mm Workspace dimensions | 1000*680*800 |
Exhaust pipe interface | DN 100 |
FH -1500B
Specifications
Parameter | Value |
|---|---|
Air tightness | ≤5% VOL /h@100 Pa |
Inlet wind speed of the front window | ≥0.4m/s |
Noise | ≤65dB(A) |
Illuminance | ≥300Lux |
Vibration | ≤5μm |
Power supply | AC 220V 50 Hz |
Maximum power consumption | 0.6 kW |
mm Overall dimensions | 1500*800*2250 |
mm Workspace dimensions | 1350*680*800 |
Exhaust pipe interface | DN 150 |
FH -1800
Specifications
Parameter | Value |
|---|---|
Air tightness | ≤5% VOL /h@100 Pa |
Inlet wind speed of the front window | ≥0.4m/s |
Noise | ≤65dB(A) |
Illuminance | ≥300Lux |
Vibration | ≤5μm |
Power supply | AC 220V 50 Hz |
Maximum power consumption | 0.8 kW |
mm Overall dimensions | 1800*800*2250 |
mm Workspace dimensions | 1650*680*800 |
Exhaust pipe interface | DN 200 |
