Product Introduction

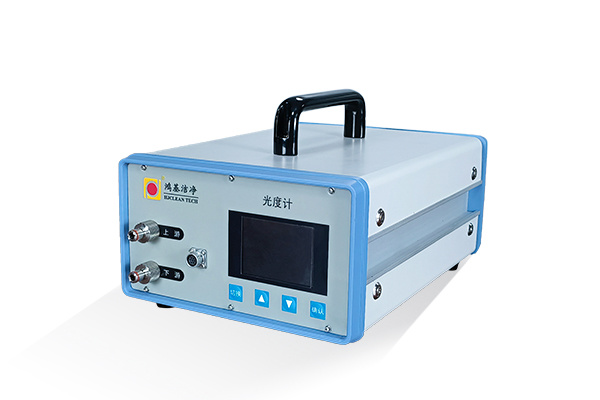

DP-30 aerosol photometer produced by Suzhou HjClean, which fills the domestic gap and has applied for both national invention patents and utility model patents; This instrument is mainly used for integrity testing of on-site high-efficiency filter systems. Its scanning probe can provide all operational functions of the host.
After performance verification, it has been proven through data and facts that it has fully reached the international advanced level in multiple technical indicators such as sensitivity, accuracy,and repeatability. Single key indicators such as self purification time have surpassed internationally renowned brands.
Product features
1. More user- friendly interface - The main unit is equipped with a 3.5-inch LCD display. The operation interface is simple and convenient. Real - time concentration data has been added. It adopts a theme - driven interface, which makes it easy to measure aerosol.s. The sampling speed of the vacuum pump is clearly displayed on the LCD, making it easily visible.e. For the selected alarm type and alarm point,there are indications on the menu below the LCD.At the top of the LCD, information such as connection status, alarm type, and report type is displayed.
2. Portable scanning probe - The scanning probe is connected via a circuit and serves as an extension of the main unit. All control states and selected icons of the main unit are displayed on the 2.8-inch LCD. This greatly improves the work efficiency of inspectors, enabling them to immediately detect and prompt for leaks during leak detection.
3. Easier traceability of test results - The DP-30 has three independent reporting functions: storage mode, continuous mode, and print mode(including filter position and other content, which can be output through a thermal printer for customers to keep).
4. Performance guarantee - The DP-30 uses a sampling pump imported from the UK and a light source imported from Japan.The core component sensor adopts top- notch high - precision processing technology in China(meeting the same standards as the technical requirements in the domestic aviation field).

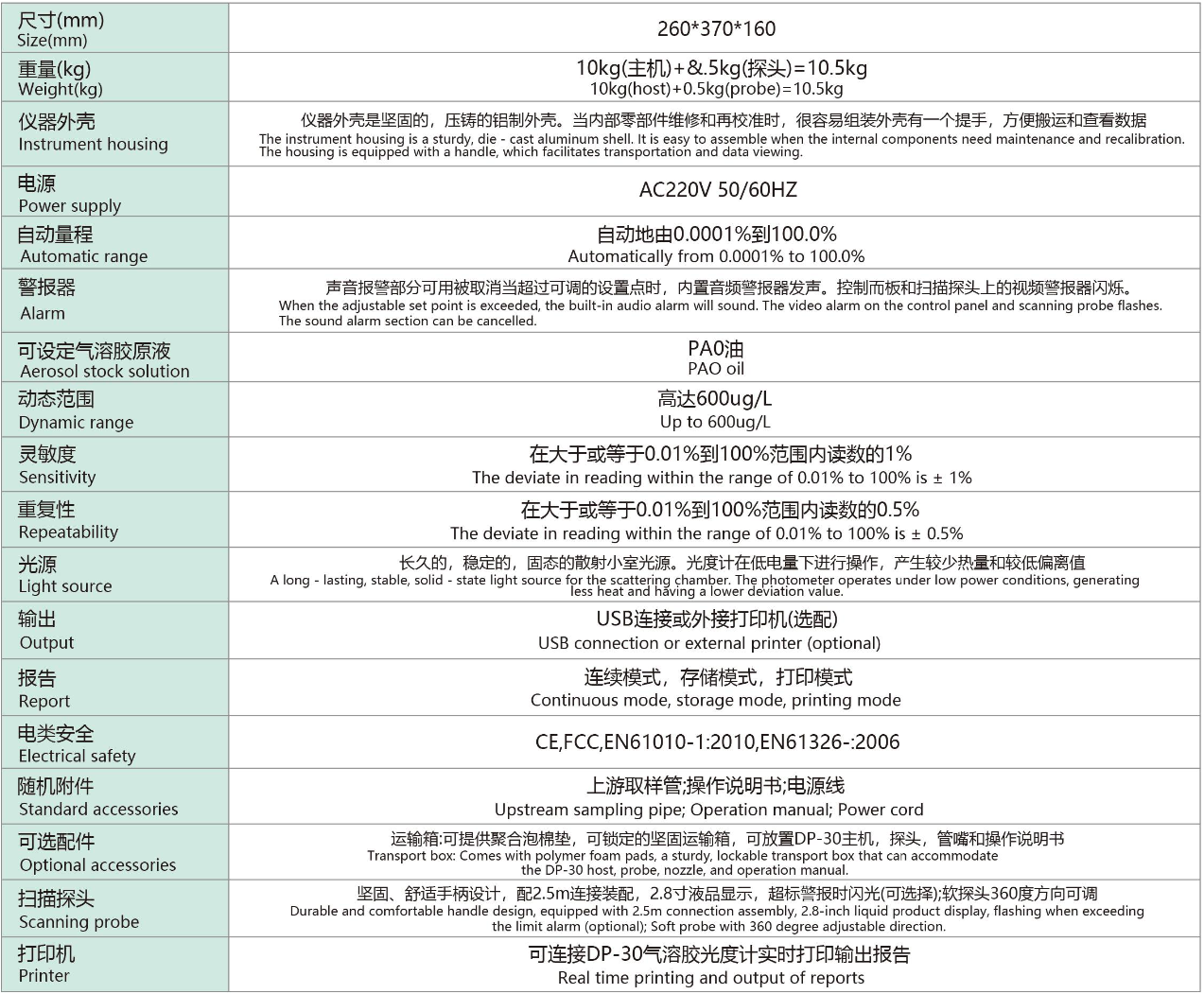

Performance parameters
Size(mm) | 260*370*160 |
Weight(kg) | 10kg(host)+0.5kg(probe)=10.5kg |
Instrument housing | The instrument housing is a sturdy,die-cast aluminum shell. |
Power supply | AC220V 50/60Hz |
Automatic range | Automatically from 0.0001%to 100.0% |
Alarm | When the adjustable set point is exceeded,the built-in audio alarm will sound.The video alarm on the control panel and scanning probe flashes. The sound alarm section can be cancelled. |
Aerosol stock solution | PAO oil |
Dynamic range | Up to 600ug/L |
Sensitivity | The deviation in reading within the range of 0.01%to 100%is±1% |
Repeatability | The deviation in reading within the range of 0.01%to 100%is±0.5% |
Light source | A long -lasting,stable,solid -state light source for the scattering chamber.The photometer operates under low power conditions,generating less heat and hǎving a lower deviation value. |
Output | USB connection or external printer (optional) |
Report | Continuous mode,storage mode,printing mode |
Electrical safety | CE,FCC,EN61010-1:2010,EN61326-:2006 |
Standard accessories | Upstream sampling pipe;Operation manual;Power cord |
Optional accessories | Transport box:Comes with polymer foam pads,a sturdy,lockable transport box that can accommodate the DP-30 host,probe,nozzle,and operation manual. |
Scanning probe | Durable and comfortable handle design,equipped with 2.5m connection assembly,2.8-inch liquid product display,flashing when exceeding the limit alarm(optional);Soft probe with 360 degree adjustable direction. |
Printer | Real time printing and output of reports |
Models and specifications
DP-30
Specifications are not yet available.
