Product introduction
The Dispensing booth is a specialized local purification device used in places such as pharmaceutical manufacturing, microbiological research, and scientific experiments. It provides a vertical unidirectional air flow. Part of the clean air circulates in the working area, and part is discharged to the nearby area, creating a negative pressure in the working area to prevent cross - contamination and ensure a highly clean environment in the working area. When weighing and sub- packaging dust and reagents in the equipment, it can control the spillage and upward movement of dust and reagents, prev

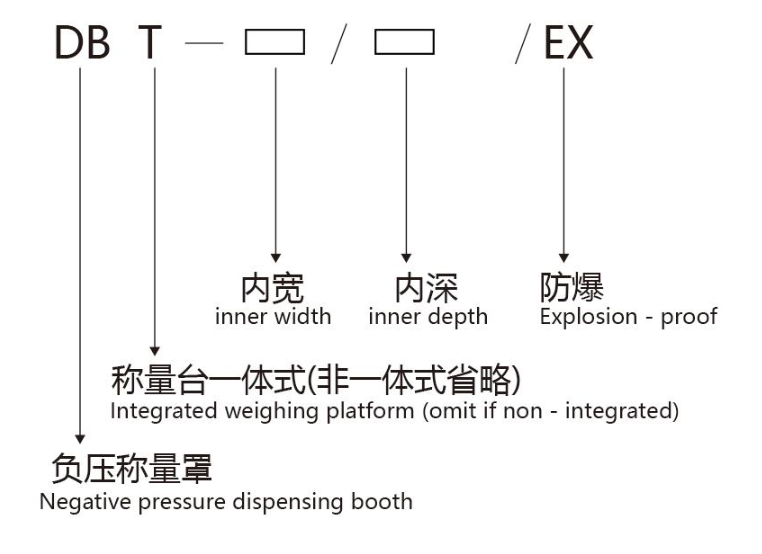

Models and specifications
Customized dispensing/sampling booth

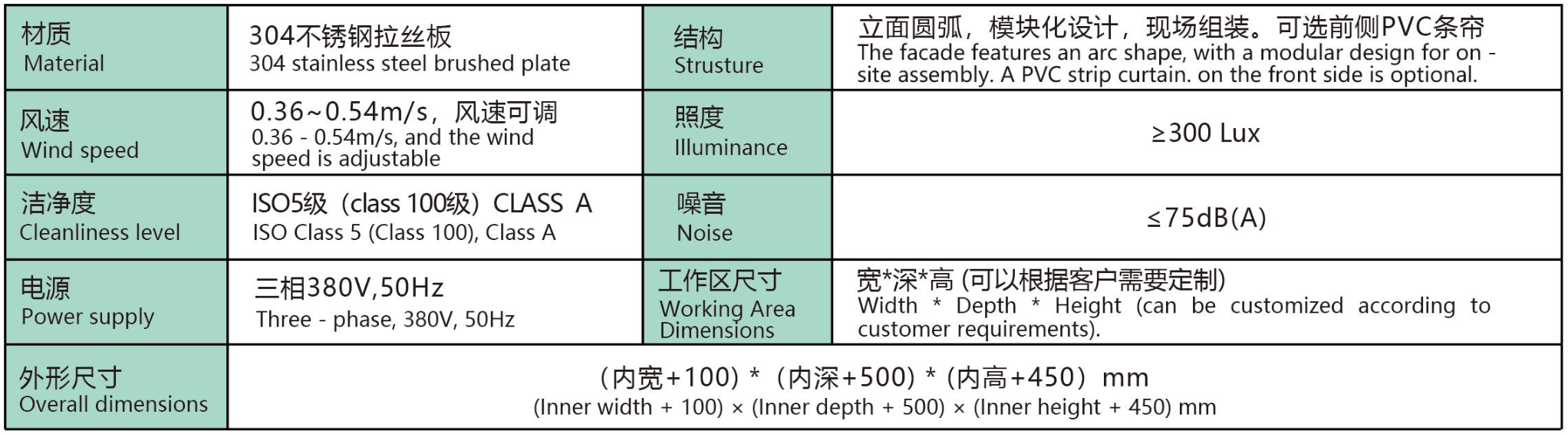

Specifications
Parameter | Value |
|---|---|
Material | stainless steel brushed plate |
Structure | PVC 条帘 The facade features an arc shape,with a modular design for on - site assembly.A PVC strip curtain on the front side is optional |
Wind speed | 0.36～0.54m/s ， 风速可调 0.36–0.54 m /s, and the wind speed is adjustable |
Illuminance | ≥300 Lux |
Cleanliness level | ISO 5级 （ class 100级 ） CLASS A ISO Class 5( Class 100), Class A |
Noise | ≤75 dB (A) |
Power supply | 三相380V,50Hz Three - phase ,380V,50 Hz |
Working Area Dimensions | 宽*深*高 （ 可以根据客户需要定制 ） Width * Depth * Height ( can be customized according to customer requirements ). |
Overall dimensions | ( 内 宽 + 1 0 0 ) * ( 内 深 + 5 0 0 ) * ( 内 高 + 4 5 0 ) m m ( Inner width +100)×( Inner depth +500)×( Inner height +450) mm |
