Product introduction
The BSPB series biological safety pass box are specialized biological safety equipment used for transferring items between functional rooms with biological safety risks. It is equipped with a supply air system, an exhaust air system, an electromagnetic door interlock system, a sealing system, a dedicated HMI (Human -Machine Interface), and a disinfection system. It is widely used for the transfer of items in places such as pharmaceutical manufacturing, medical treatment, healthcare, animal experiments, and biosafety testing.

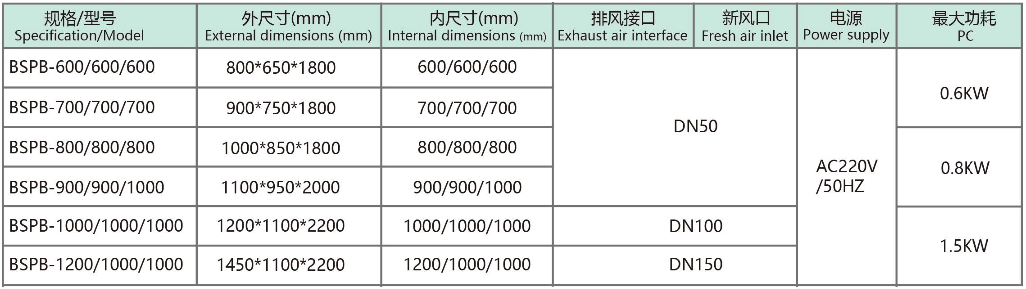

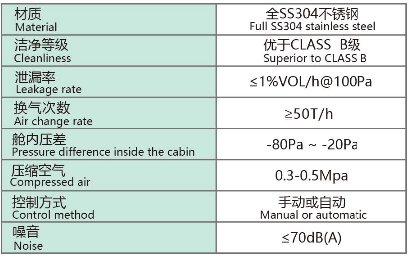

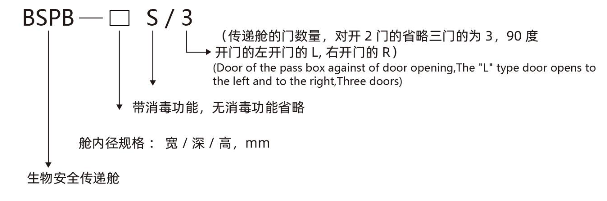

Models and specifications
BSPB-1000/1000/1000
Specifications
Parameter | Value |
|---|---|
mm ） External dimensions(mm) | 1200*1100*2200 |
mm ） Internal dimensions(mm) | 1000/1000/1000 |
E xhaustair interface | DN100 |
Power supply | 1. 5 kW |
BSPB-1200/1000/1000
Specifications
Parameter | Value |
|---|---|
mm ） External dimensions(mm) | 1450*1100*2200 |
mm ） Internal dimensions(mm) | 1200/1000/1000 |
E xhaustair interface | DN150 |
BSPB-600/600/600
Specifications
Parameter | Value |
|---|---|
mm ） External dimensions(mm) | 800*650*1800 |
mm ） Internal dimensions(mm) | 600/600/600 |
E xhaustair interface | DN50 |
Freshair inlet | AC220V /50 Hz |
Power supply | 0.6 kW |
BSPB-700/700/700
Specifications
Parameter | Value |
|---|---|
mm ） External dimensions(mm) | 900*750*1800 |
mm ） Internal dimensions(mm) | 700/700/700 |
BSPB-800/800/800
Specifications
Parameter | Value |
|---|---|
mm ） External dimensions(mm) | 1000*850*1800 |
mm ） Internal dimensions(mm) | 800/800/800 |
Power supply | 0.8 kW |
BSPB-900/900/1000
Specifications
Parameter | Value |
|---|---|
mm ） External dimensions(mm) | 1100*950*2000 |
mm ） Internal dimensions(mm) | 900/900/1000 |
Downloads
No downloads are available yet.
Request product information
