Product introduction
TECHNICAL SPECIFICATIONS(AGLB series glove box): Glove box is a closed system with inert gas protection and ultra-low leakage rate.It is widely used in new energy,lithium battery,vacuum deposition,laser welding,nuclear industry, laboratories, and other industries. In terms of operation forms,there are single sided and double sided operation forms; from a structural perspective,there are integrated and split types; from a functional perspective,there are automatic control of gas pressure,automatic control of water and oxygen content,and automatic regeneration and reduction of purification colum

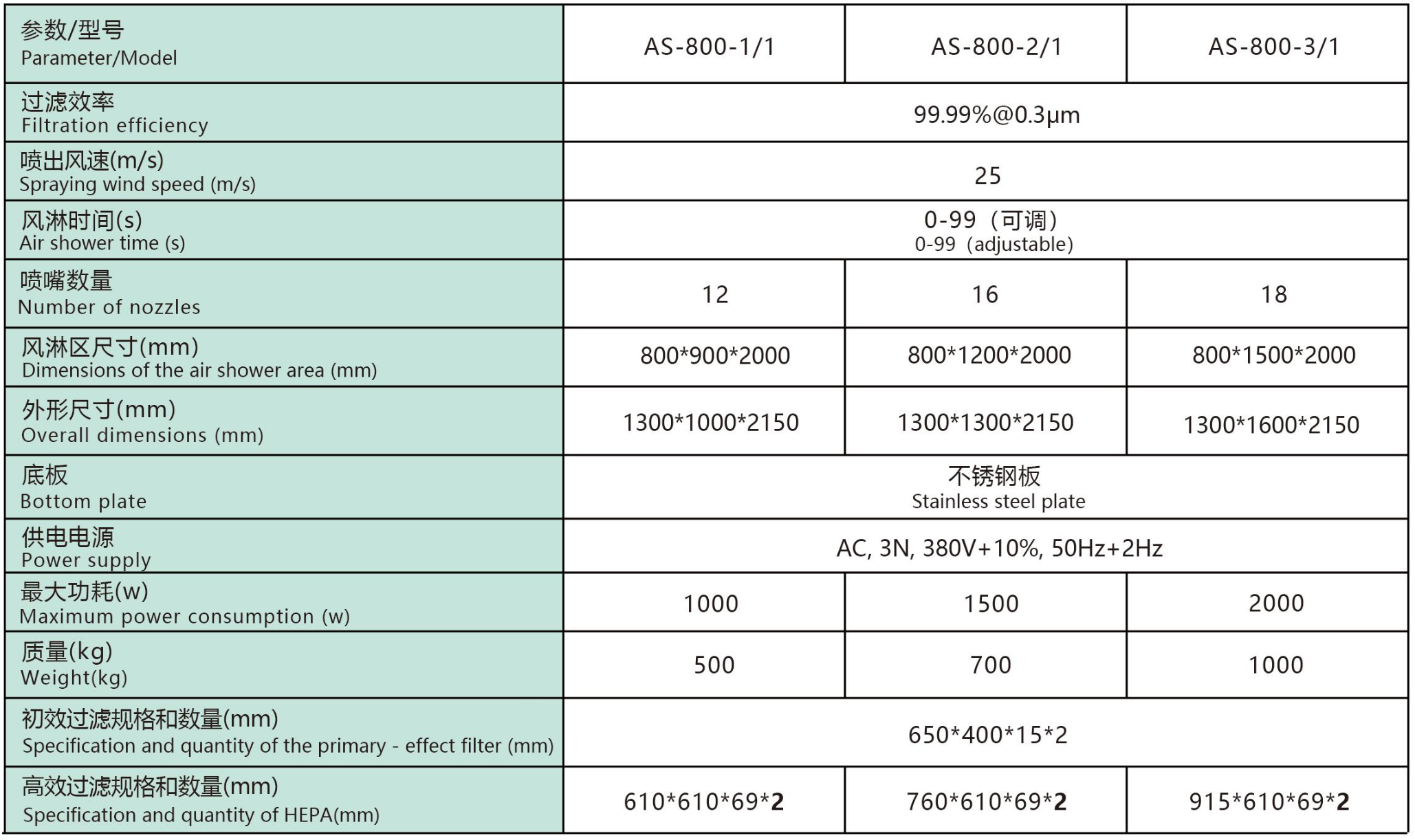

Models and specifications
AS -800-1/1
Specifications
Parameter | Value |
|---|---|
Filtration efficiency | 99.99%@0.3μm |
s ） Spraying wind speed (m | 25 |
s ）Air shower time (s) | 0 - 99 （ 可调 ） 0-99( adjustable ) |
Number of nozzles | 12 |
mm ） Dimensions of theair shower area ( mm ) | 800*900*2000 |
mm ） Overall dimensions ( mm ) | 1300*1000*2150 |
Bottom plate | Stainless steel plate |
Power supply | AC ,3N,380V+10%,50 Hz +2 Hz |
w ） Maximum power consumption (W ) | 1000 |
kg ） Weight (kg ) | 500 |
mm ） Specification and quantity of the primary -effect filter(mm) | 650*400*15*2 |
mm ） Specification and quantity of HEPA ( mm ) | 610*610*69*2 |
AS -800-2/1
Specifications
Parameter | Value |
|---|---|
Filtration efficiency | 99.99%@0.3μm |
s ） Spraying wind speed (m | 25 |
s ）Air shower time (s) | 0 - 99 （ 可调 ） 0-99( adjustable ) |
Number of nozzles | 16 |
mm ） Dimensions of theair shower area ( mm ) | 800*1200*2000 |
mm ） Overall dimensions ( mm ) | 1300*1300*2150 |
Bottom plate | Stainless steel plate |
Power supply | AC ,3N,380V+10%,50 Hz +2 Hz |
w ） Maximum power consumption (W ) | 1500 |
kg ） Weight (kg ) | 700 |
mm ） Specification and quantity of the primary -effect filter(mm) | 650*400*15*2 |
mm ） Specification and quantity of HEPA ( mm ) | 760*610*69*2 |
AS -800-3/1
Specifications
Parameter | Value |
|---|---|
Filtration efficiency | 99.99%@0.3μm |
s ） Spraying wind speed (m | 25 |
s ）Air shower time (s) | 0 - 99 （ 可调 ） 0-99( adjustable ) |
Number of nozzles | 18 |
mm ） Dimensions of theair shower area ( mm ) | 800*1500*2000 |
mm ） Overall dimensions ( mm ) | 1300*1600*2150 |
Bottom plate | Stainless steel plate |
Power supply | AC ,3N,380V+10%,50 Hz +2 Hz |
w ） Maximum power consumption (W ) | 2000 |
kg ） Weight (kg ) | 1000 |
mm ） Specification and quantity of the primary -effect filter(mm) | 650*400*15*2 |
mm ） Specification and quantity of HEPA ( mm ) | 915*610*69*2 |
