Product Introduction
Portable aerosol generator can be classified into two types based on their operating principles: the condensation-oscillation type and the heating type. Among them, the condensation-oscillation type includes two models—AG-220 (pump-type) and AG-230 (compressed-air type)—while the heating type includes the AG-1800 model.
The aerosol generator can produce polydisperse particles; under a pressure of 20 pisg and a flow rate ranging from 50 to 5,400 CFM, it can generate aerosol particles with a concentration of 10–100 μg/L (AG-230).

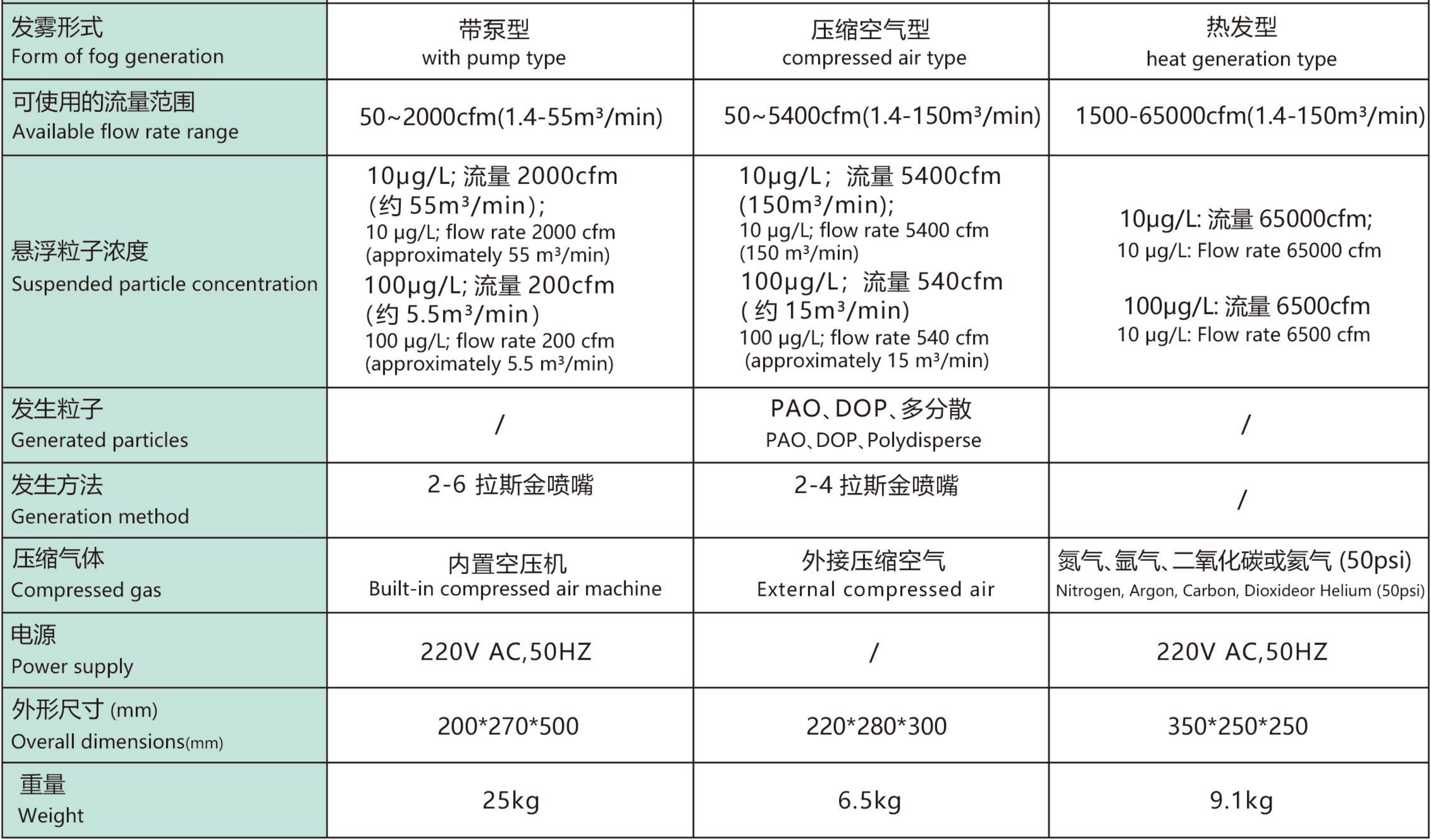

Models and specifications
AG -230
Product Introduction

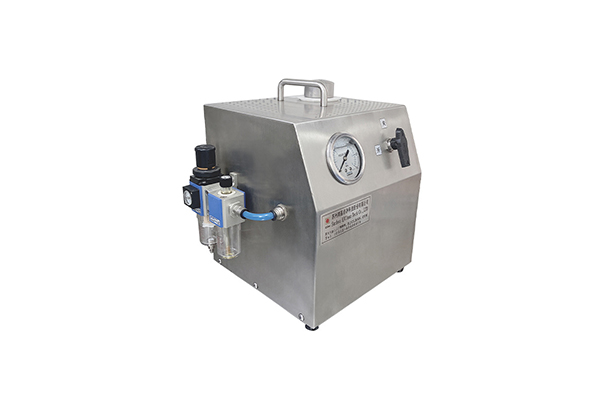

AG-230 aerosol generator is the latest light weight stainless steel condensate oscillation generator independently developed and produced by our company.
It only needs clean compressed gas to generate polydisperse particles. There are 4 Laskin nozzles. When the pressure is 20 psig and the air flow is
540 cfm, the aerosol concentration is about 100 ug/L.The regulating valve can adjust the instrument to use 2-4 nozzles to provide aerosol particle
concentrations in different ranges.
Performance parameters
Form of fog generation | compressed air type |
Available flow rate range | 50~5400 cfm (1.4 — 150m³/ min ) |
Suspended particle concentration | 10μg/L;flow rate 5400 cfm (150 m³/min) 100 μg/L;flow rate 540 cfm (approximately 15 m³/min) |
Generated particles | PAO 、 DOP 、 Polydisperse |
Generation method | 2-4 laskin nozzle |
Compressedgas | External compressed air |
Power supply | / |
mm ） Overall dimensions ( mm ) | 220*280*300 |
Weight | 6.5kg |
AG -220
Specifications
Parameter | Value |
|---|---|
Form of fog generation | with pump type |
Available flow rate range | 50~2000 cfm (1.4 — 55m³/ min ) |
Suspended particle concentration | 10μg/L ； 流量2000 cfm （ 约55m³/ min ） ; 10μg/L;flow rate 2000 cfm (approximately 55 m³/min) 100μg/L ； 流量200 cfm （ 约5.5m³/ min ） 100 μg/L;flow rate 200 cfm (approximately 5.5 m³/min) |
Generated particles | / |
Generation method | 2-6拉斯金喷嘴 |
Compressedgas | Built-in compressed a ir machine |
Power supply | 220 V AC ,50 Hz |
mm ） Overall dimensions ( mm ) | 200*270*500 |
Weight | 25kg |
AG -1800
Specifications
Parameter | Value |
|---|---|
Form of fog generation | heat generation type |
Available flow rate range | 1500-65000 cfm (1.4 — 150m ³/ min ) |
Suspended particle concentration | 10μg/L ： 流量65000 cfm ; 10μg/L: Flow rate 65000 cfm 100μg/L ： 流量6500 cfm 10 μg/L:Flow rate 6500 cfm |
Generated particles | / |
Generation method | / |
Compressedgas | psi ） Nitrogen,Argon,Carbon,Dioxideor Helium(50psi) |
Power supply | 220 V AC ,50 Hz |
mm ） Overall dimensions ( mm ) | 350*250*250 |
Weight | 9.1 kg |
